1. Introduction:

TX-OC-K01 obstacle light controller, the shell is made of 304 stainless steel; It has the characteristics of small size, light weight and strong corrosion resistance. The control part adopts LORA wireless remote control, the best control distance can reach 10KM; External super large human-computer interaction touch screen, users can set obstacles through the screen, and can monitor the obstacle light.

2. Application field:

The products are used to control and monitor the work of various types of aviation obstacle lights.

3. Main functions and features:

● The shell is made of 304 stainless steel.

● The use of LORA wireless remote control, without cumbersome line laying can achieve the obstacle light synchronization or monitoring.

● Product performance meets CAAC and ICAO requirements.

● With surge protection device, can be applied to harsh working environment.

● It has impact resistance, lightning protection, sun resistance, rain and snow resistance, and can resist the invasion of severe weather such as typhoon and hail.

● With overcurrent protection function.

● Touch man-machine interaction system, through the screen can set the obstacle light, at the same time can monitor the obstacle light.

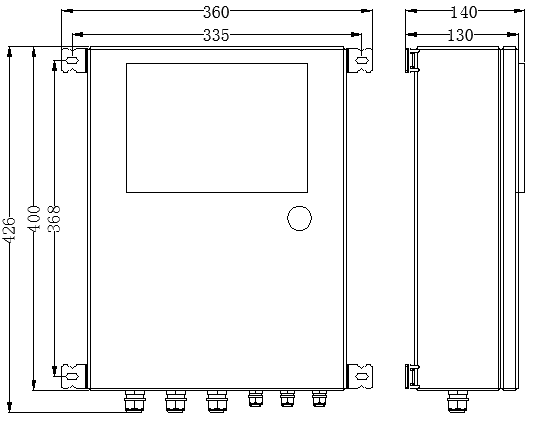

4. Installation dimension diagram
