1. Introduction:

The GS-LS-G solar aviation obstacle light uses an integrated design of solar panels with a built-in conversion efficiency of up to 19%, and a special lithium iron phosphate battery for solar power. The control circuit adopts micro-power MCU control chip, which can control the charging and discharging state of the battery more accurately, and also reduce the energy consumption of the control circuit itself. The light source uses a special customized LED chip, which has the characteristics of high luminous brightness, low energy consumption and long life. The lamp shade is made of UV resistant PC material, which has the characteristics of corrosion resistance, UV resistance and impact resistance. The base is made of Marine grade special plastic material, which is suitable for sea lanes, Bridges, chemical plants and other places in harsh and corrosive environment.

2. Main functions and features:

● Designed to work continuously for more than 20 days on rainy days (calculated by 10 hours of work per day).

● The product has automatic light control function, and the lamp automatically starts working in rainy days and at night.

● Standardized optical design, high photoelectric conversion efficiency.

● High efficiency solar chip, photoelectric conversion efficiency of more than 19%.

● Integrated waterproof design, can be soaked in seawater, protection level up to IP68.

● Special custom LED chip, conversion efficiency and life is higher than ordinary LED.

● The circuit adopts advanced charge and discharge management system, which effectively extends the battery life.

● The external state switch of the lamp can adjust the constant light or flash working state of the lamp according to the demand.

● It has impact resistance, lightning protection, sun resistance, rain and snow resistance, and can resist the invasion of severe weather such as typhoon and hail.

● The internal use of replaceable solar lithium iron phosphate battery, reducing the user's later maintenance costs and maintenance difficulties.

● The use of Marine grade special plastic materials, specially suitable for the harsh environment of the sea, rivers, chemical plants, airports and other places.

● With bird protection device.

● No radio frequency, no electromagnetic interference.

● Stable work, low cost.

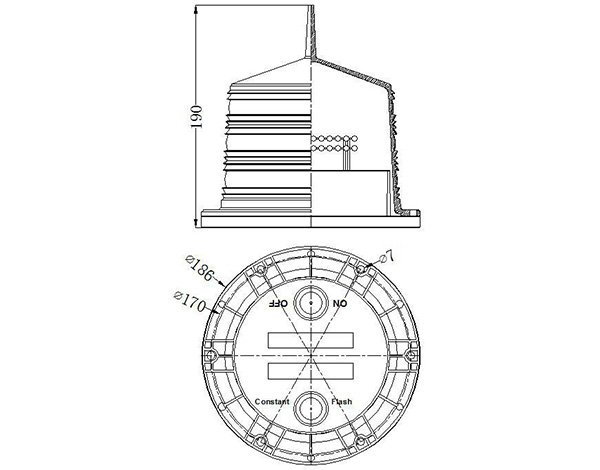

3. Installation dimension diagram

4. use precautions

● Please read the instructions carefully and use the product correctly.

● The solar aviation obstacle light must be installed in a sunny place to ensure that the solar lamp can work continuously.

● Install the lamp on the mounting surface perpendicular to the axis of the lamp, and the mounting surface should be smooth and have sufficient mechanical strength.

● If the lamp does not work in a low light environment when the lamp is used for the first time, the solar lamp can be placed under the sun for 12 hours to work normally.

● If the lamp needs to be stored for a long time, the power switch should be turned off and placed in a dry place. Every 3 months, please take out the solar lamp and put it in the sun for five days to ensure the life of the battery.

● If you have any other questions during use, please contact us.

5. use:

Buildings, Bridges, iron towers, communication towers, chimneys, airport runways, taxiways, temporary military airfields, runway side lights, navigation beacon lights, helipads, traffic barriers, tower cranes.
